22 Series -- Introduction

The 22 series bearings cover three core types: 22200/22300 spherical roller bearings and N2200 cylindrical roller bearings. Made of high-quality chrome steel (GCr15), they perform excellently in high-temperature, heavy-load and precision scenarios, complying with international standards and trusted globally.

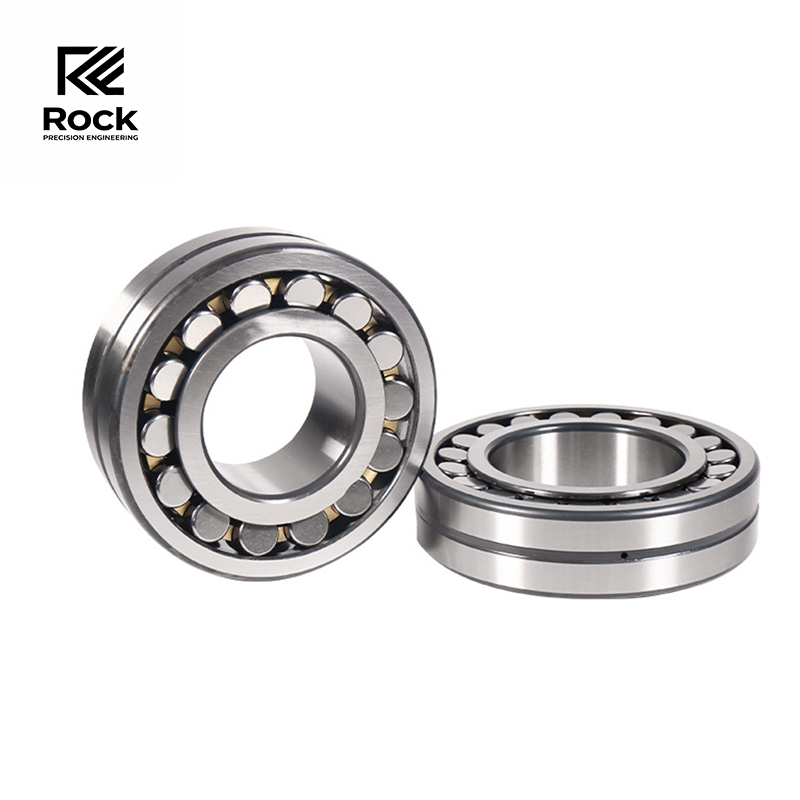

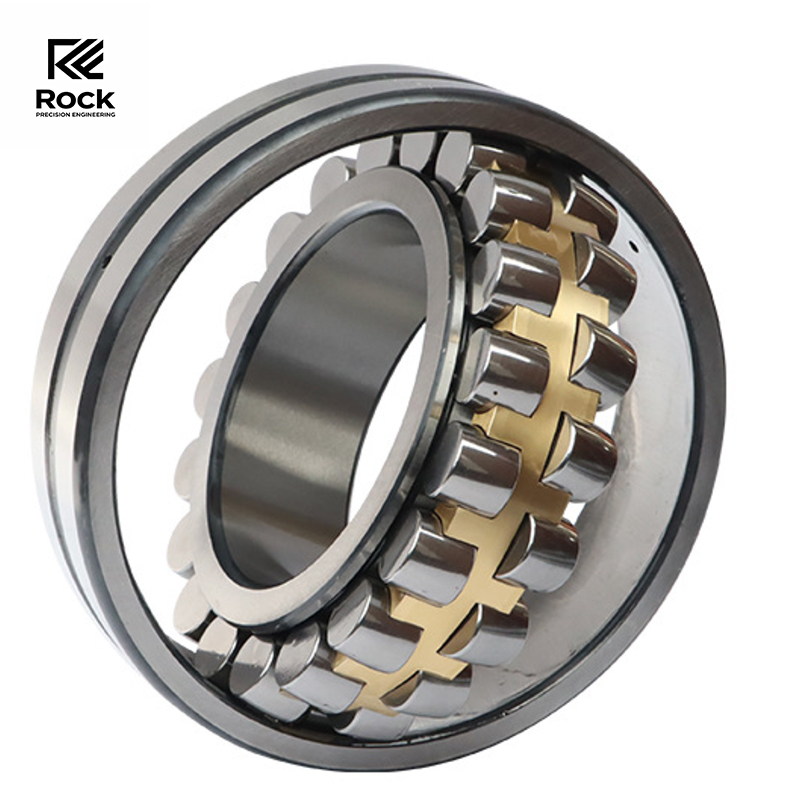

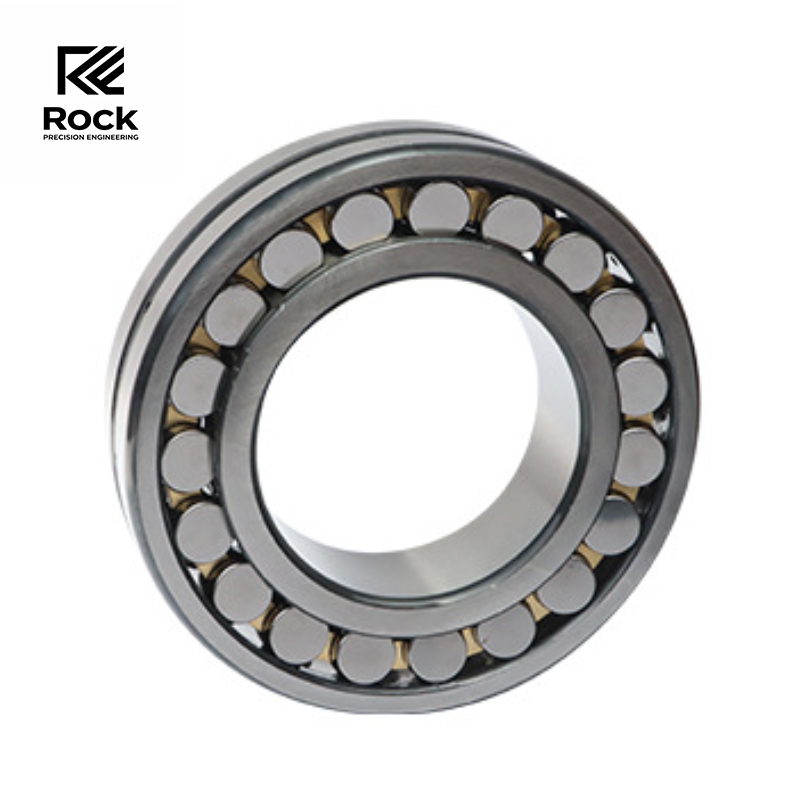

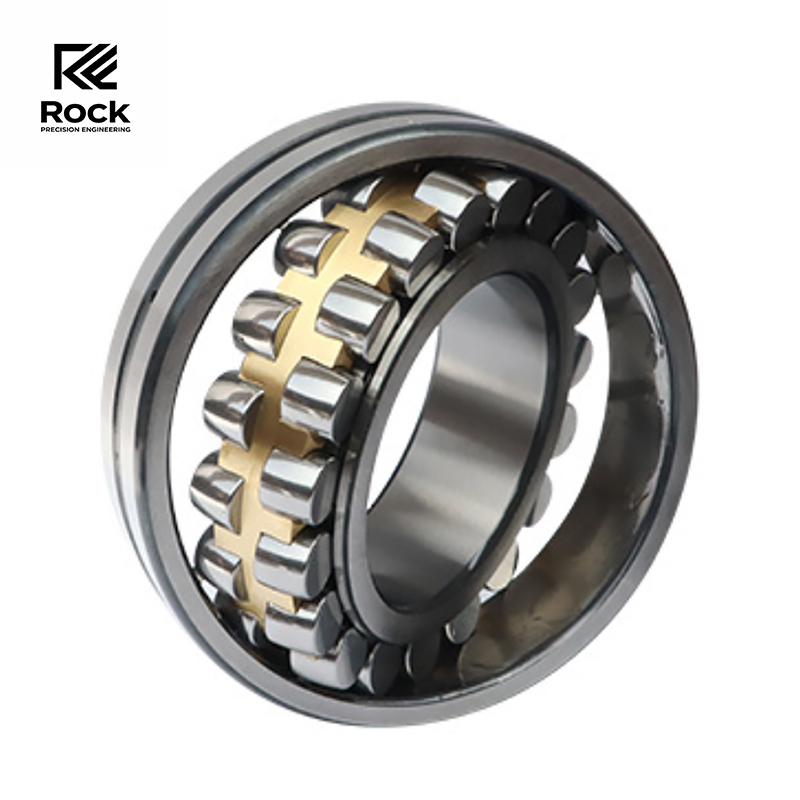

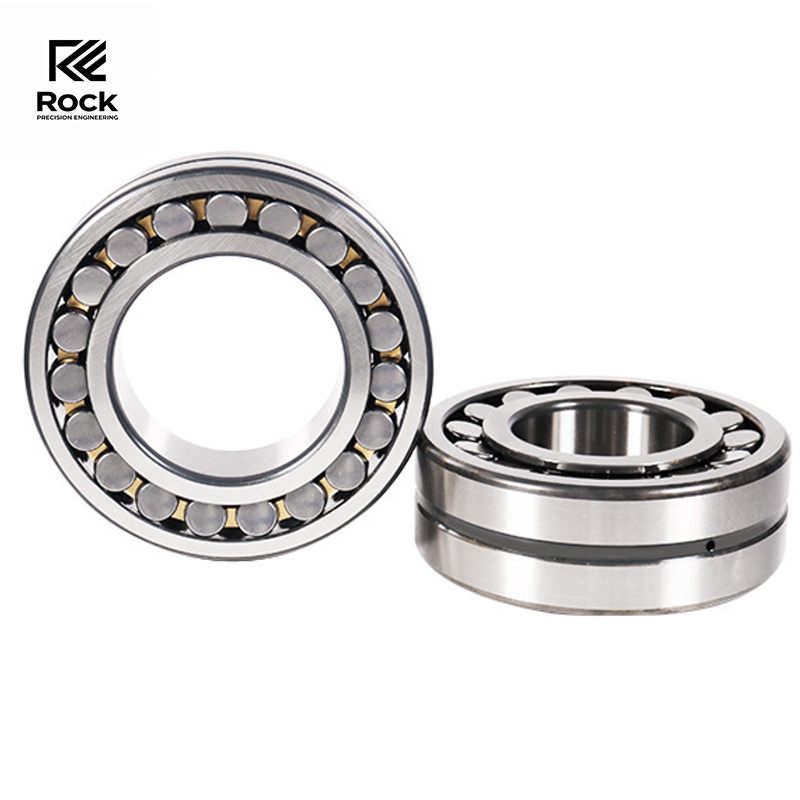

The 22200 series spherical roller bearings have self-aligning capability to compensate coaxiality errors. With separable inner rings for easy maintenance, they balance rigidity and flexibility, suitable for general industrial machinery like conveyors and gearboxes.

Designed for heavy-duty use, the 22300 series features a wider inner ring and strong structure. It resists shock loads and operates stably in harsh environments, with low maintenance for large equipment like steel mill machinery.

The N2200 series cylindrical roller bearings prioritize high speed and precision. With compact structure and low friction, they ensure smooth rotation, ideal for precision equipment like motor spindles and CNC lathes.

22 Series -- Applications

With diverse advantages, 22 series bearings are widely used in multiple industries:

22200 Series: Conveyors, pumps, gearboxes, CNC accessories and agricultural equipment, ideal for general industrial use.
22300 Series: Vibrating screens, steel mill equipment, wind power parts and forging machinery, suitable for harsh heavy-duty conditions.
N2200 Series: Motor spindles, precision gearboxes, printing machinery and CNC lathes, meeting high-precision requirements.

Popular models (22205-22212, 22305-22310, N2205-N2210) cover diverse dimensions for customized needs.

22 Series -- Model

Model	d (mm)	D (mm)	B (mm)	Cr (kN)	Cor (kN)	Ultimate Speed (r/min)	Reference Speed (r/min)	Weight (kg)
22204	20	47	18	41.5	42	7500	6000	0.18
22206	30	62	20	61	65	6300	5000	0.3
22208	40	80	23	90.5	102	5300	4000	0.56
22210	50	90	23	102	122	4800	3600	0.65
22212	60	110	28	151	179	4300	3200	1.2
22214	70	125	31	185	220	3800	2800	1.65
22216	80	140	33	260	320	3600	2800	2.4
22218	90	160	40	365	480	3200	2400	3.8
22220	100	180	46	490	670	2800	2200	5.6
22222	110	200	53	490	640	2600	2000	7.36
22224	120	215	58	565	765	2400	1900	9.28
22226	130	230	64	655	915	2200	1700	11.6
22228	140	250	68	755	1030	2000	1600	13.9
22230	150	270	73	864	1200	1800	1400	18.9
22232	160	290	80	980	1380	1700	1300	23
22234	170	310	86	1100	1550	1600	1200	27.5
22236	180	320	86	1180	1680	1500	1100	30
22238	190	340	92	1320	1880	1400	1000	35
22240	200	360	98	1450	2080	1300	950	40
22244	220	400	108	1780	2600	1100	850	52
22248	240	440	120	2100	3050	1000	750	68
22252	260	480	128	2450	3550	900	670	85
22256	280	500	130	2800	3900	800	600	98
22260	300	540	140	3239	4250	700	500	139
